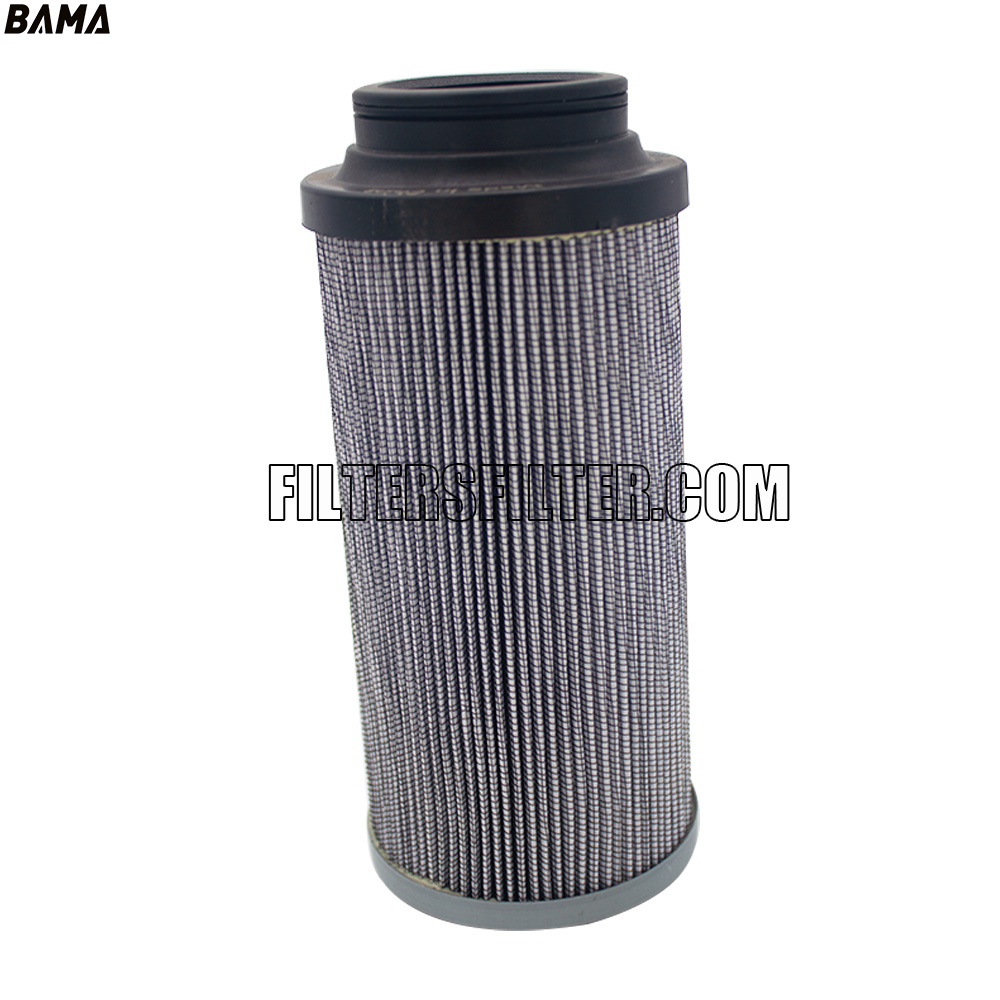

Langfang Bangmao Filter Equipment Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | BAMA |
| Supply Ability : | 10000 Piece/Pieces per Month |
| Price : | $10.00 - $30.00/pieces |
Performance Data | Dimensional Specifications | Physical Specifications | |
Micron Rating:10.00 ABSOLUTE | (A) Outer Diameter, Top:3.62 IN (91.95 MM) | Handle:NONE | |
Beta Rating: B10=200 | (B) Outer Diameter, Bottom:3.62 IN (91.95 MM) | Seal Material:BUNA-N | |
Collapse Pressure Rating:290 PSID | (C) Inner Diameter, Top:1.90 IN (48.26 MM) | Type of Adhesive:EPOXY | |
Maximum Temperature:250 F | (D) Inner Diameter, Bottom:2.04 IN (51.82 MM) | Type of Endcap:CORROSION RESISTANT STEEL | |
Direction of Flow: OUTSIDE->IN RECOMMENDED CHANGEOUT DIFFERENTIAL PRESSURE:50 PSID | (E) Length:2.04 IN (51.82 MM) (F) THREAD:NONE | Center Tube: CORROSION RESISTANT STEEL | |
Get the quote by contacting us | Type of Media:MICROGLASS | ||
Filter Area: N/A | |||
Plating:ZINC PLATED | |||
Outer Jacket:NONE | |||
Configuration:DOUBLE OPEN END | |||
|
|
